Juniper Archer 4

Download Datasheet

Archer 4 – Built to Work, Built to Last

The Archer 4 Rugged Handheld represents the next generation of Juniper’s proven Archer series — a powerful, reliable, and field-ready platform for mobile data collection. Built on the Android 14 operating system (upgradeable through Android 18), the Archer 4 provides long-term software support and compatibility with a wide range of popular Android applications, making it a future-ready tool for data-driven professionals.

Powered by the Qualcomm® QCM4490 octa-core processor, the Archer 4 delivers fast, efficient performance for demanding field tasks. Its 5G connectivity, Wi-Fi 6E, and Bluetooth® 5.2 capabilities ensure workers stay connected in real time — whether in remote locations, warehouses, or on active construction sites. The ergonomic, ultra-rugged design with IP68 and MIL-STD-810H certification ensures durability against dust, water, vibration, and drops, providing complete confidence in the field.

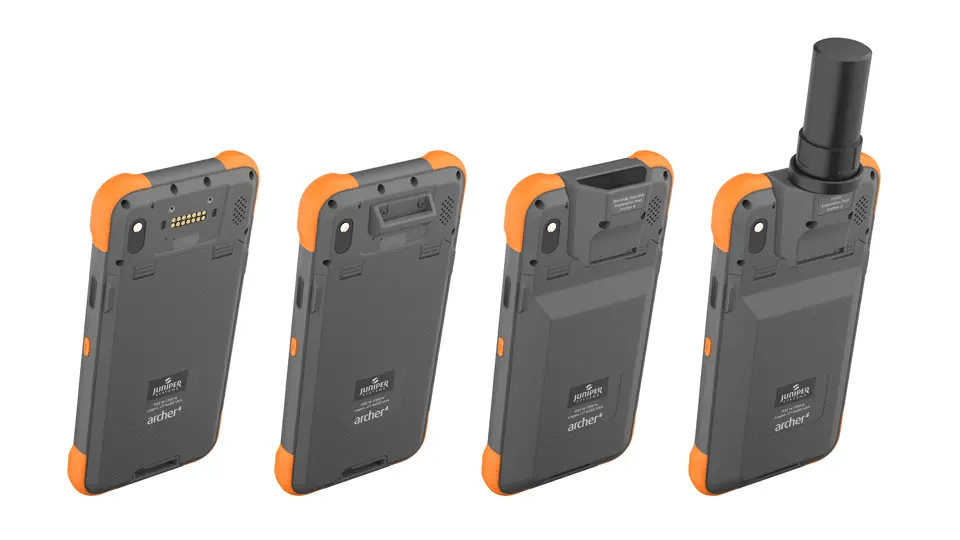

The Archer 4 also offers extensive flexibility, with optional RTK-enabled GNSS Expansion Pods for centimetre-level positioning and barcode scanner modules for seamless data capture. Designed for all-day productivity, it features a sunlight-readable 6.26-inch display, an optional 8,300 mAh battery for up to 20 hours of runtime, and hot-swappable power for continuous operation.

Key Features

• Android 14 operating system – GMS-certified with EDLA, upgradeable through Android 18 for long-term support.

• Powerful performance – Qualcomm® QCM4490 octa-core processor up to 2.4 GHz for smooth, reliable operation.

• 5G connectivity – high-speed cellular performance with dual Nano SIM slots and 4G LTE fallback for uninterrupted communication.

• Versatile GNSS capability – built-in dual-band GNSS (GPS, GLONASS, Galileo, Beidou, QZSS) and optional RTK-enabled GNSS Expansion Pod for centimetre accuracy.

• Rugged IP68 design – waterproof, dustproof and drop-tested to MIL-STD-810H standards; fully operational from –20 °C to +60 °C.

• All-day battery life – standard 4,500 mAh or optional 8,300 mAh battery with hot-swap capability for non-stop fieldwork.

• Bright 6.26” display – sunlight-readable Full HD+ Gorilla® Glass 5 screen, optimised for wet touch operation.

• Juniper Rugged™ durability – built and tested beyond standard requirements for maximum reliability in extreme environments.

• Expansion options – optional 1D/2D barcode scanner module and additional hardware integration ports.

• Professional-grade cameras – 48 MP rear camera with LED flash and 16 MP front camera for clear, detailed imagery.

• Comprehensive certifications – compliant with CE, FCC, UKCA, RCM, AT&T, GCF, and other global standards for industry assurance.
