Javad TRIUMPH-1M Plus
TRIUMPH-1M Plus – Precision GNSS Smart Antenna
The TRIUMPH-1M Plus from JAVAD GNSS is a high-precision GNSS Smart Antenna that combines cutting-edge positioning technology with robust connectivity and an integrated MEMS IMU for tilt-compensated RTK performance. Designed for professional surveying and geospatial applications, it delivers sub-centimetre accuracy, rapid initialisation, and dependable operation in the most demanding field environments.
Equipped with a 4G cellular modem, full-band UHF radio, and Bluetooth® 5.1 and Wi-Fi® connectivity, the TRIUMPH-1M Plus offers flexible communication for both Base/Rover and Network RTK configurations. JAVAD’s patented in-pole UHF and cellular antenna design enhances signal reliability while keeping the receiver compact and easy to handle.
Powered by advanced multi-constellation tracking across GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC, SBAS and L-Band, the TRIUMPH-1M Plus ensures optimal satellite coverage and robust positioning even under challenging conditions. With up to 18 hours of battery life, an IP68-rated housing, and compliance with MIL-STD-810H standards, it is built to withstand extreme weather, vibration and drops without compromising performance.
Key Features
-
Multi-constellation, multi-frequency tracking – supports GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC, SBAS and L-Band signals with 874 channels for ultimate reliability.
-
Tilt-compensated RTK – integrated MEMS IMU provides precise measurements up to 30° tilt with accuracy of RTK + 5 mm + 0.5 mm/° tilt.
-
Integrated communications – built-in 4G modem, UHF radio (406–470 MHz, up to 2 W), Bluetooth® 5.1, and Wi-Fi® 2.4/5 GHz for complete connectivity.
-

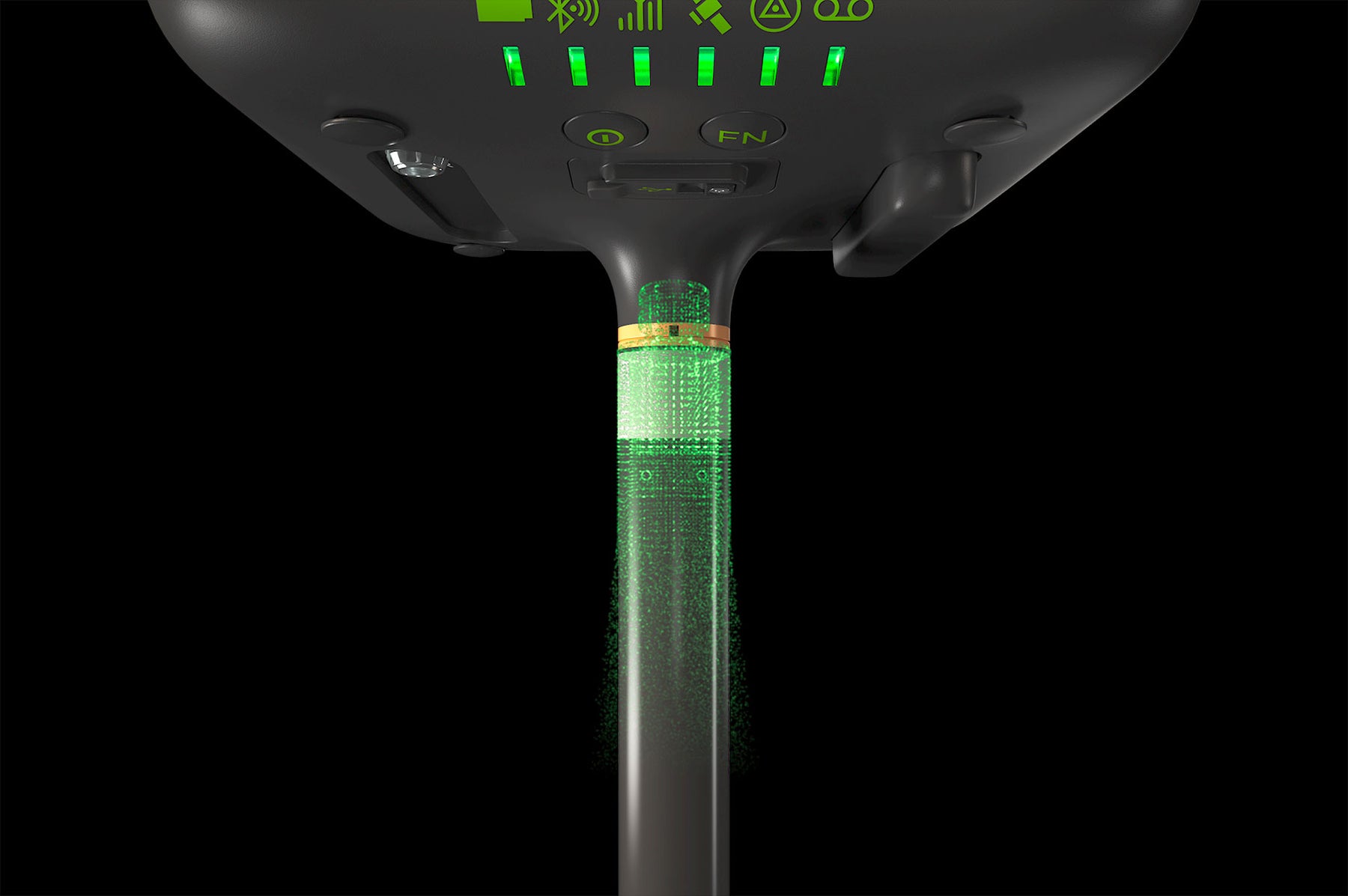

JAVAD patented in-pole antenna – ensures strong, interference-free UHF and cellular performance in a streamlined design.
-
Exceptional accuracy – delivers RTK precision of 8 mm + 1 ppm horizontal and 15 mm + 1 ppm vertical, with static accuracy down to 3 mm.
-
Rapid start-up – cold start in < 35 seconds, warm start in < 5 seconds, and RTK initialisation in 2–6 seconds.
-
Long battery life – dual Li-Ion batteries provide up to 18 hours of continuous operation.
-
Rugged and weatherproof – IP68 ingress protection, MIL-STD-810H shock and vibration compliance, and operating range of –40 °C to +65 °C.
-
Compact and portable – measures 178 × 96 × 178 mm and weighs 1.7 kg, ideal for field deployment.
-
Flexible data management – 64 GB internal storage with USB-C connectivity for easy data transfer and charging.
