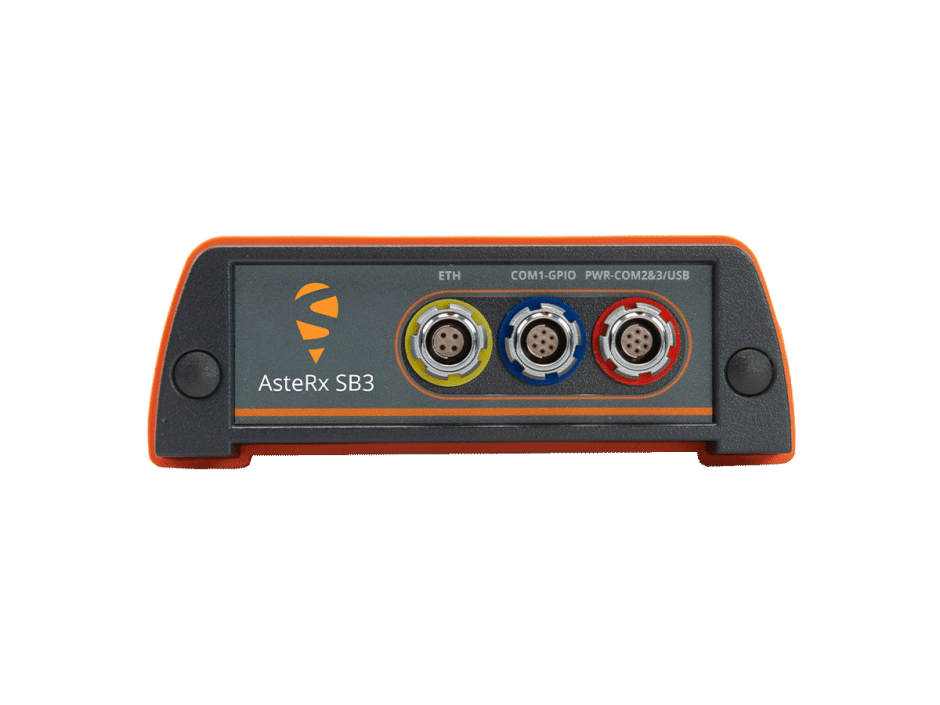

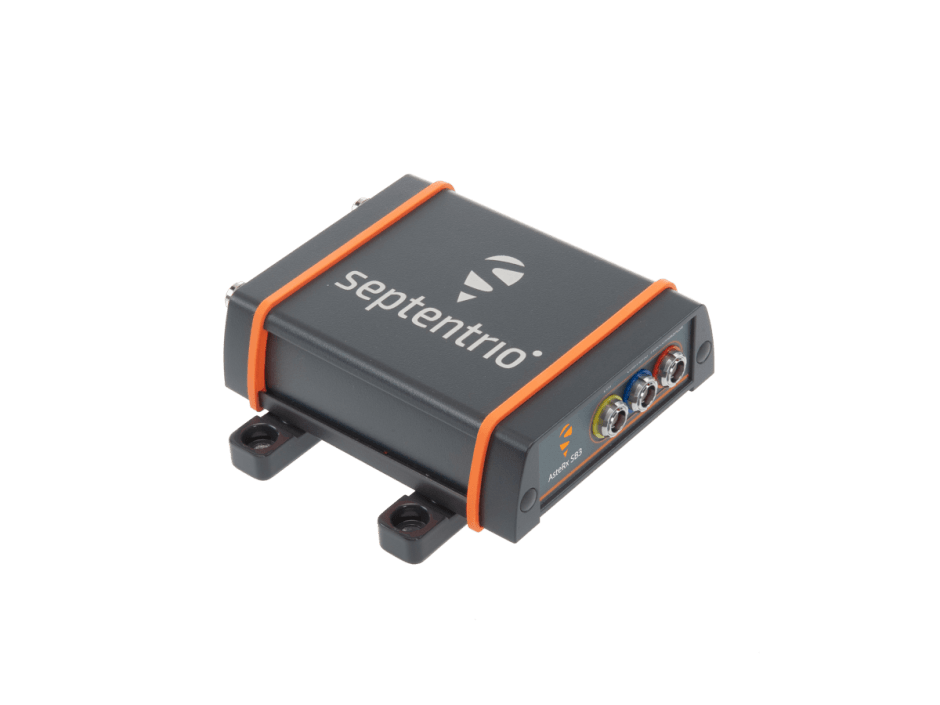

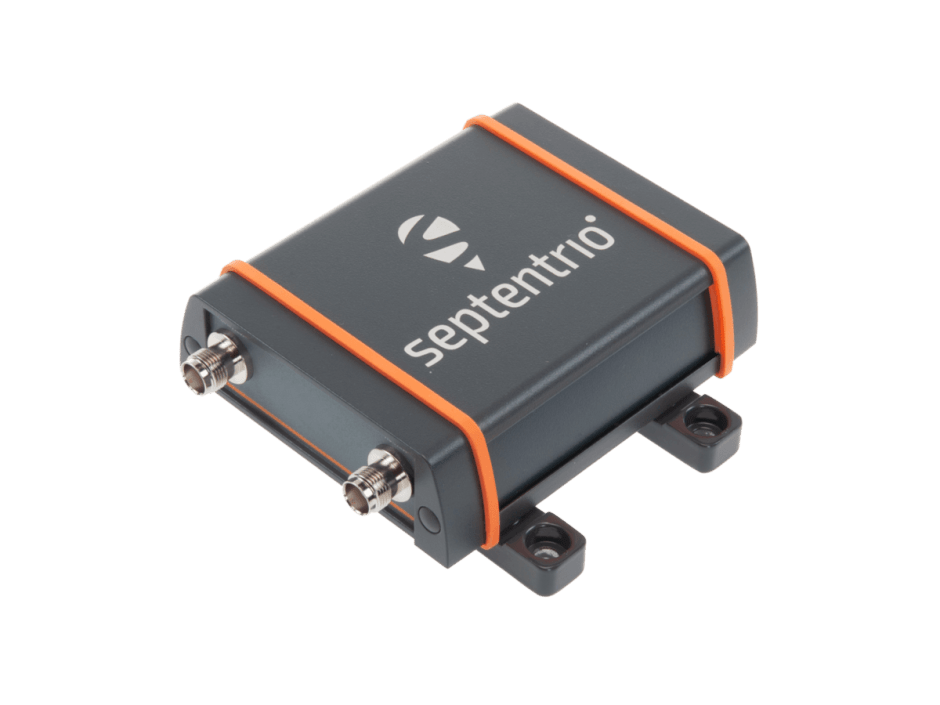

AsteRx SB3 CLAS – Advanced GNSS Receiver with Integrated CLAS Corrections

The AsteRx SB3 CLAS is Septentrio’s most advanced housed, multi-frequency GNSS receiver, combining cutting-edge positioning performance with outstanding reliability. Designed for use as either a rover or base station, it delivers centimetre-level RTK accuracy and sub-degree heading in a robust, IP68-rated weatherproof enclosure built to withstand the toughest environments.

Powered by triple-band, all-in-view GNSS tracking, the AsteRx SB3 CLAS ensures precise, stable positioning even in challenging conditions. It offers high update rates and low latency, making it ideal for fast-moving vehicles and dynamic machine control applications. Integrated with Japan’s Centimetre Level Augmentation Service (CLAS) via the Quasi-Zenith Satellite System (QZSS), it provides plug-and-play sub-decimetre accuracy without the need for external correction links.

Equipped with Septentrio’s renowned GNSS+ Algorithm Suite, including LOCK+, IONO+, APME+, RAIM+, and AIM+, the AsteRx SB3 CLAS delivers exceptional resilience against signal degradation caused by vibration, interference, or multipath reflections. The receiver also features an intuitive Web User Interface (WebUI) for easy configuration, monitoring, and control from any connected device.

Key Features

• Triple-band GNSS tracking – delivers reliable centimetre-level RTK positioning and sub-degree heading from initialisation.

• Integrated CLAS correction service – utilises Japan’s Centimetre Level Augmentation Service (QZSS) for effortless sub-decimetre accuracy.

• Rover or base station functionality – versatile design supports multiple operational roles with internal data logging.

• High update rate and low latency – ideal for fast-moving applications such as autonomous vehicles and precision machine control.

• Robust IP68 housing – weatherproof, compact design ready for deployment in demanding field conditions.

• GNSS+ Algorithm Suite – includes LOCK+, IONO+, APME+, RAIM+, and AIM+ technologies for superior performance in interference-prone environments.

• AIM+ anti-jamming protection – automatically mitigates interference from narrow- and wide-band signals, including satellite transmissions.

• Easy operation and monitoring – intuitive WebUI provides full control, configuration, and live quality indicators from any device.
