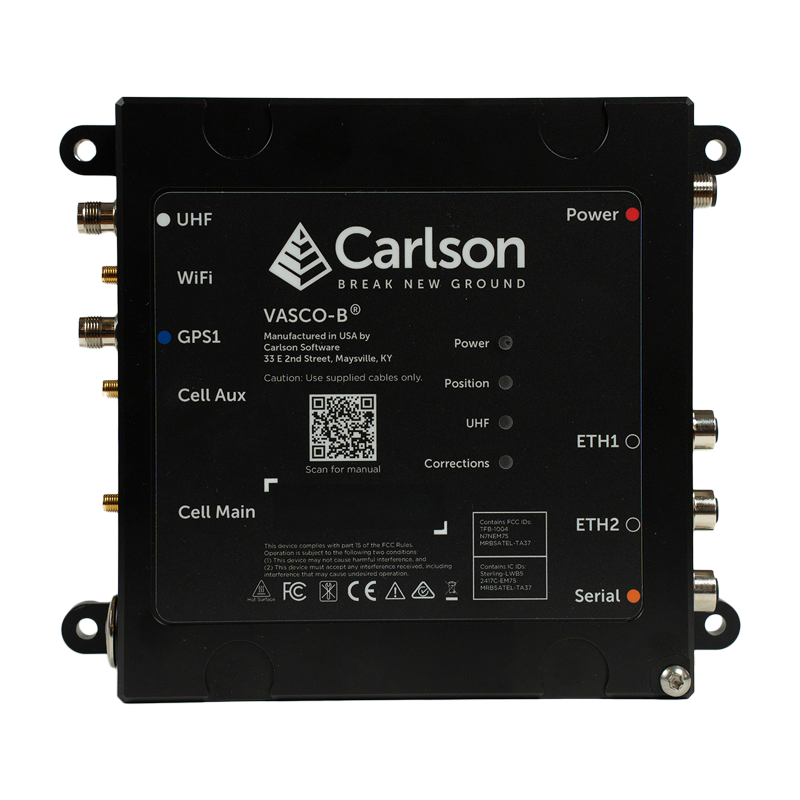

Carlson VASCO-B GNSS Base Station
The Carlson VASCO®-B is a high-precision, multi-purpose GNSS base station designed for permanent installation in both office and harsh outdoor environments. Suitable for local site setups or full network configurations, it delivers reliable, high-accuracy RTK corrections for a wide range of GNSS applications.
Precision GNSS Performance
Featuring a 448-channel high-precision GNSS receiver, the VASCO-B tracks all major constellations including GPS, GLONASS, Galileo, BeiDou, NavIC and QZSS.
RTK Accuracy (RMS):
-
Horizontal: 0.6 cm + 0.5 ppm
-
Vertical: 1 cm + 1 ppm
It supports standard protocols including RTCM 3.4, CMR, CMR+, NMEA and RINEX, ensuring compatibility with surveying equipment and correction services.
Flexible RTK Broadcasting & Connectivity
RTK corrections can be transmitted via:
-
4G LTE (with 3G fallback)
-
UHF radio (configurable TX & RX)
-
Network/NTRIP

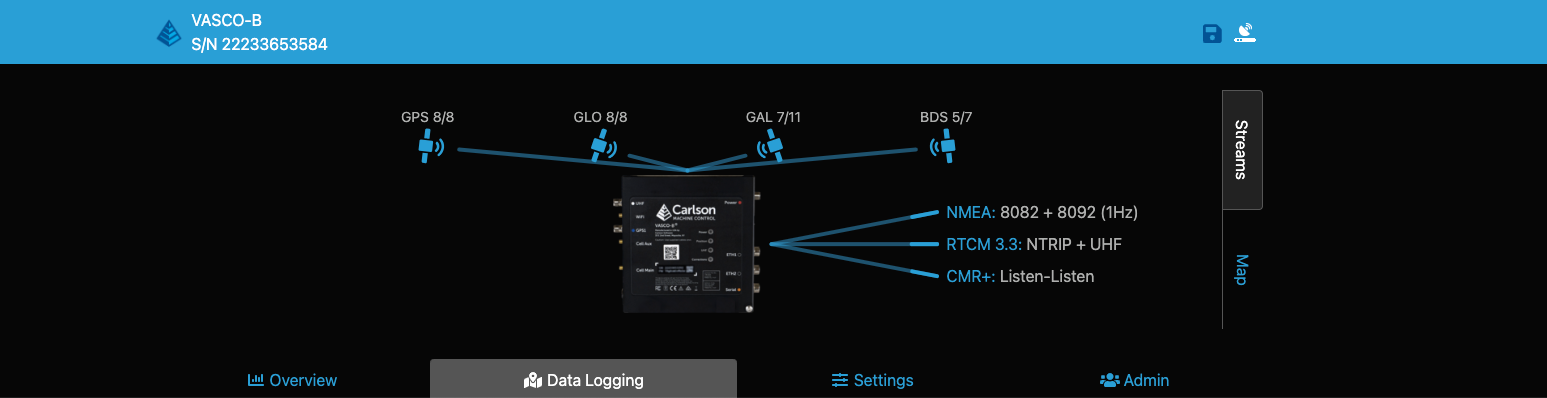

A built-in remote web interface allows straightforward configuration, monitoring and troubleshooting.
Connectivity options include dual Ethernet (M12), RS232/RS422 serial ports, Bluetooth, Wi-Fi, external antenna connections, and a wide 10–30 V DC power input range.
Advanced GNSS+ Protection
Carlson’s GNSS+ technologies enhance signal reliability:
-
AIM+ – Anti-jamming and anti-spoofing protection
-
IONO+ – Ionospheric disturbance protection
-
APME+ – Multipath mitigation
-
LOCK+ – Stable tracking during vibration and shock
-
RAIM+ – Autonomous integrity monitoring
Built for Extreme Environments
Constructed with an anodised aluminium housing, the VASCO-B is engineered for durability with:
-
IP67 waterproof rating
-
Operating temperature range of -40°C to +65°C
-
Shock and vibration resistance (BS EN 60068)
-
IK10 impact protection
Assembled in Maysville, Kentucky, with components from the USA and Europe, the Carlson VASCO®-B provides dependable, long-term GNSS base station performance for survey, construction and network applications.
